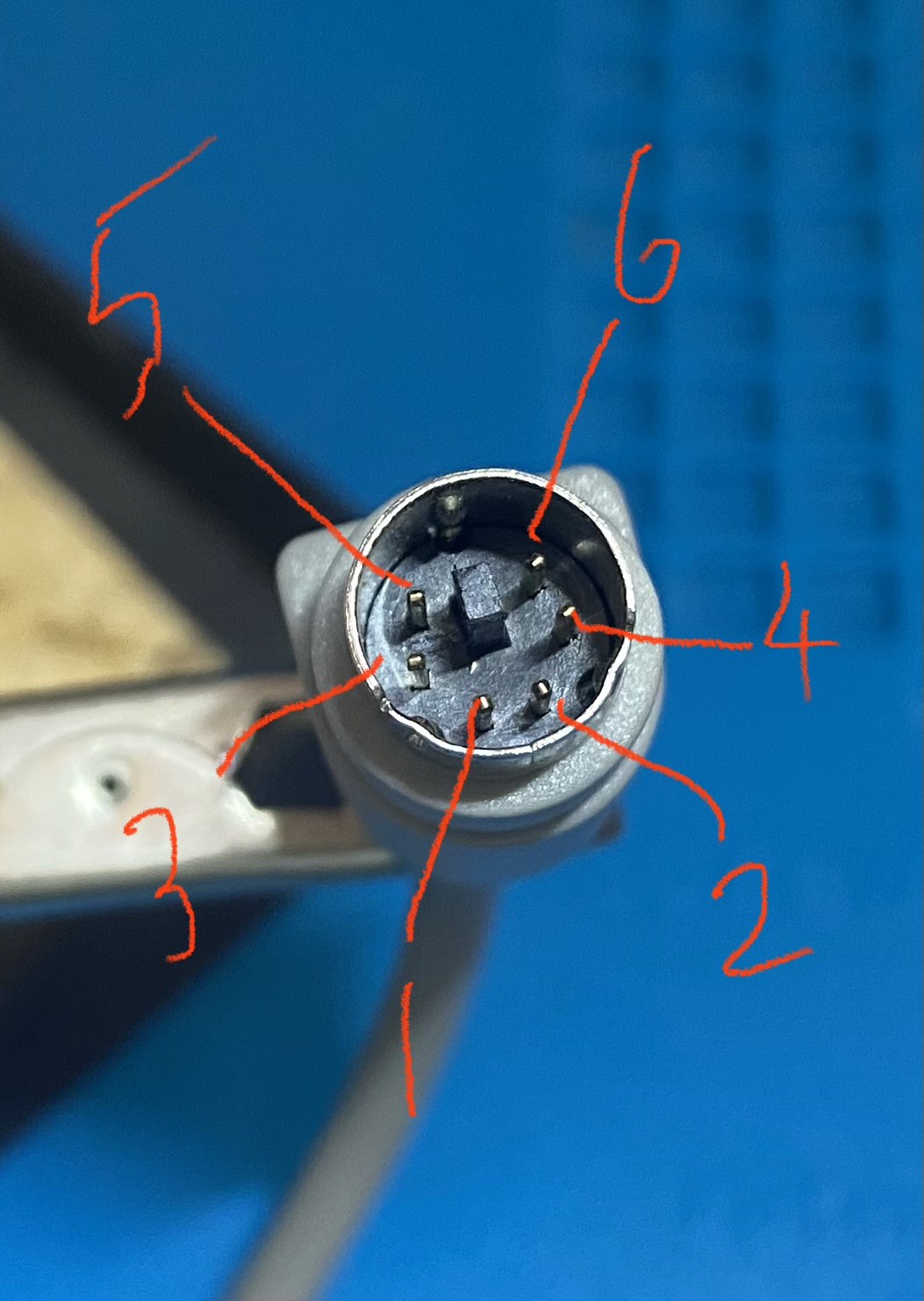

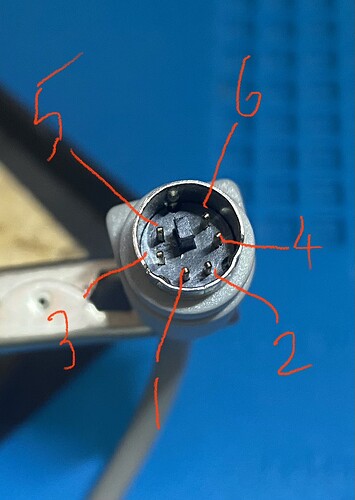

Hi Just a quick one, can someone confirm that these pin numbers are correct for this data plug as I'm just going around and around trying to get the RIM_LiTE running with a RSPi3 and FT8800. Thanks in advance.
Yes, that's correct for a 6-pin mini-DIN plug.
Thanks
Looks like the RiM_Lite is not plying ball
That Pinout looks correct. Here is a cable diagram to go from the RIM_Lite to the 6-pin Mini-DIN:
(Be advised the diagrams shown in the PDF are from the RADIO side, so they will be a mirror image of the photo you shared.)
If the diagram doesn't get you going, and you think you might have a bad module, feel free to e-mail direct and I'll see if I can help further.
Thanks, it was just one of those days that send you around and around, when you purchase something and it doesn’t work
, my cable wiring is correct just the Rim_Lite not doing its thing
···
