LinkBox Web Monitor + Admin (tlb-2+) — public release

K8LRC · August 9, 2026, 1:55am

We are releasing LinkBox Web Monitor + Admin tlb-2+.
Public package is live (tested before release).

For operators using TheLinkBox and the chan_tlb client who want a web Monitor + Manager.

Docs
README: http://45.32.193.131/tlb-2+/README-FIRST.txt
Setup: http://45.32.193.131/tlb-2+/SETUP-INSTRUCTIONS.txt
Release: http://45.32.193.131/tlb-2+/release-2+.txt
Package: http://45.32.193.131/tlb-2+/

Fresh install

wget 'http://45.32.193.131/install-tlbweb-fresh'
chmod +x install-tlbweb-fresh
sudo ./install-tlbweb-fresh
Update

wget 'http://45.32.193.131/update-tlbweb-latest'
chmod +x update-tlbweb-latest
sudo ./update-tlbweb-latest
The installer asks for your site info (IP, reflector/conference name, Supermon URL, etc.) and can write tlb.ini for you.

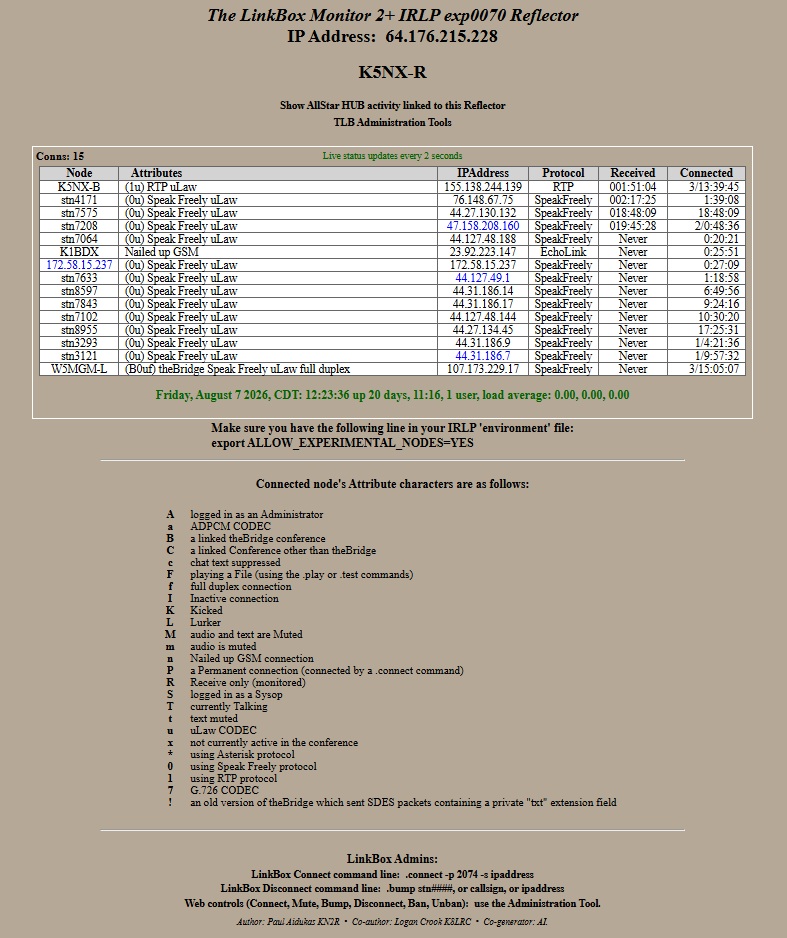

Public monitor: exp.php

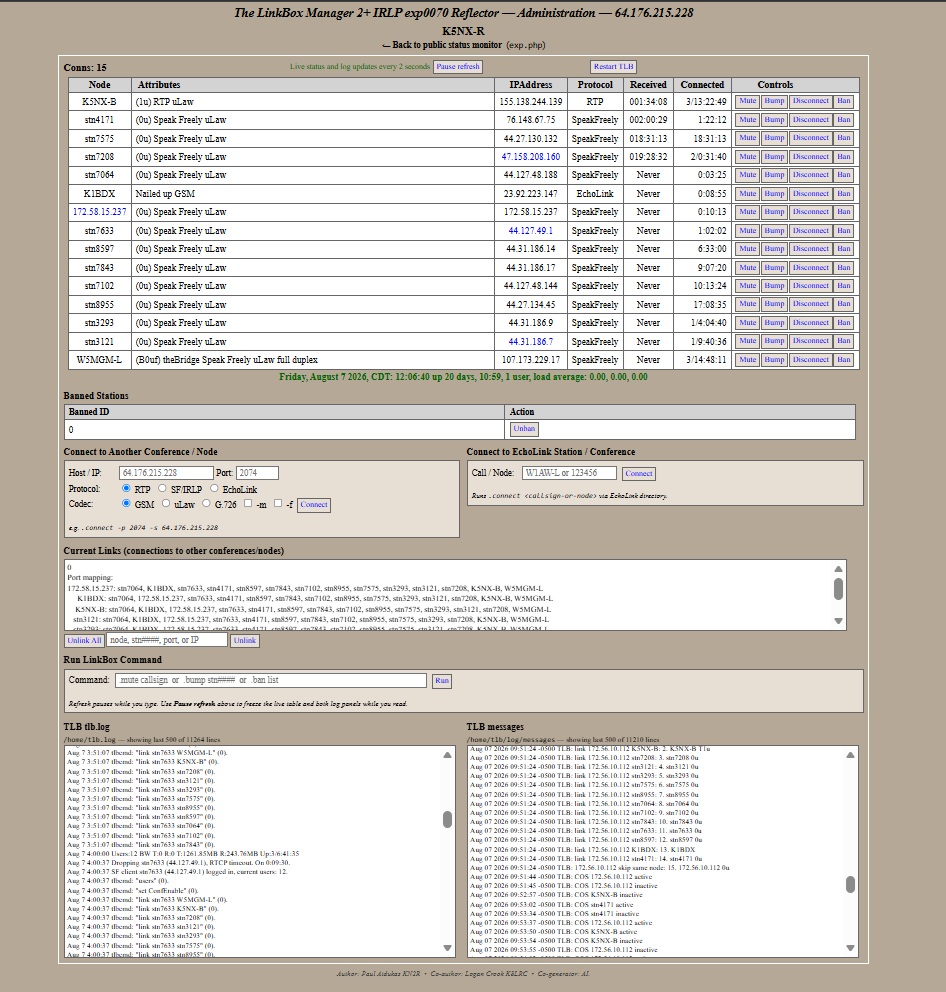

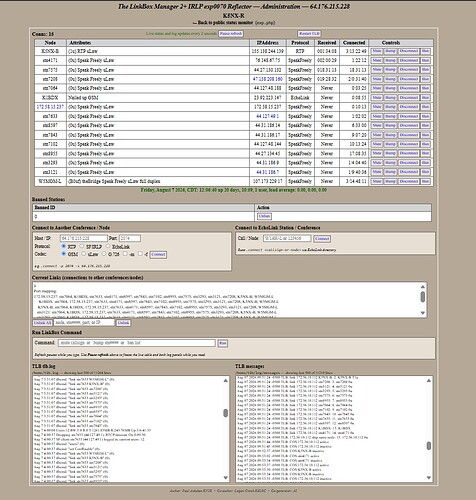

Admin: tlb-admin/ (Apache Basic Auth)

Authors: Paul Aidukas KN2R, Logan Crook K8LRC

Questions/feedback welcome.

K5NX · August 9, 2026, 11:31pm

For all those running the LinkBox as a standalone reflector or you're using it as a bridge or both, this LinkBox Web Monitor + Admin to administrate the system is 100% easier than opening up SSH and typing in command line, now just with the click of a button one can administrate so much easier now!

Thanks Paul and Logan!

David K5NX
