usb.conf is listed below. I removed my actual node number and replaced it with “NODE”
; If you are going to use this channel driver, you MUST enable it in modules.conf
; noload => chan_usbradio.so ; CM1xx USB Cards with Radio Interface Channel Driver (DSP)
; to:
; load => chan_usbradio.so ; CM1xx USB Cards with Radio Interface Channel Driver (DSP)
; Usbradio channel driver Configuration File
[general]
[usb_NODE]
eeprom = 0 ; EEPROM installed: 0,1
; 0 = no (default)
; 1 = yes
hdwtype = 0 ; Leave this set to 0 for USB sound fobs modified using
; the instructions from usbfob.pdf. Use a setting of
; 1 is for Dingotel/Sph interfaces.
rxboost = 1 ; 0 - 20db attenuator inserted
; 1 - 20db attenuator removed
; Set to 1 for additonal gain if using a low-level receiver output
rxctcssrelax = 1 ; reduce talkoff from radios w/o CTCSS TX HPF
; Do not change this, leave this as a 1
rxsqhyst = 3000 ; Setting Squelch Hysteresis
; 3000 is the default amount.
; An amount of 500 seems good.
; Then set the squelch to the highest number revealed when doing a “radio
; tune rxsquelch” - running the command multiple (like 20) times in a row.
; http://allstarnode.com/wiki/lib/exe/fetch.php?media=asterisk-notes-wj8g.pdf
txctcssdefault = 77.0 ; default TX CTCSS frequency, any frequency permitted
rxctcssfreqs = 77.0 ; RX CTCSS frequencies list in floating point. must be in table
txctcssfreqs = 77.0 ; TX CTCSS frequencies list. any frequency permitted. will follow RX CTCSS frequency
rxctcssoverride = 1 ; Set to 1 to start out in carrier squelch mode
carrierfrom = usbinvert ; no,usb,usbinvert,dsp,vox
; no - no carrier detection at all
; usb - from the COR line on the USB sound fob (Active high)
; usbinvert - from the inverted COR line on the USB sound fob (Active low)
; dsp - from RX noise using DSP techniques
; vox - voice activated from RX audio
ctcssfrom = dsp ; no,usb,usbinvert,dsp
; no - no CTCSS decoding, system will be carrier squelch
; usb - from the CTCSS line on the USB sound fob (Active high)
; usbinvert - from the inverted CTCSS line on the USB sound fob (Active low)
; dsp - CTCSS decoding using RX audio in DSP.
; rxdemod option must be set to flat for this to work.

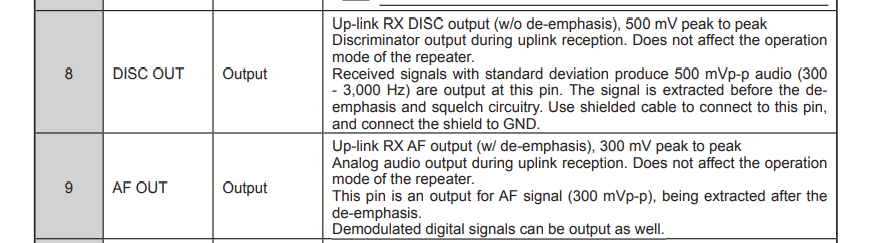

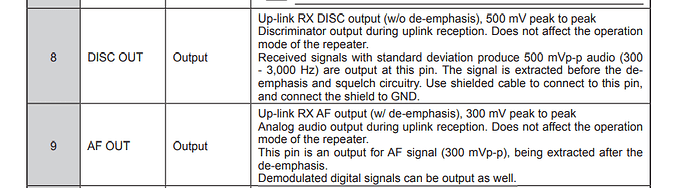

rxdemod = speaker ; input type from radio: no,speaker,flat
; no - RX audio input not used
; flat - Use RX audio from discriminator (before de-emphasis)
; speaker - use de-emphasized audio
rxsquelchdelay = 20 ; delayline in ms carrier squelch tail eliminator
rxondelay = 0 ; Number of 20mSec intervals following the release of PTT.
; Uncomment and/or adjust for simplex nodes to eliminate “Ping Ponging”
; or “Relay Racing”. A positive value here will instruct the usbradio
; driver to ignore the COR line for a specified number of 20mSec
; intervals following the release of PTT. Use this ONLY on simplex
; nodes, and leave commented out for repeaters or other full duplex nodes.
txboost = 1 ; Add transmitter audio gain boost: 0,1
txprelim = yes ; Audio processing on left output channel: no,yes
; no - Audio is not pre-emphasized and limited.
; Suitable for use on a microphone input
; yes - Audio is pre-emphasized and limited.
; Suitable for direct connection to an FM modulator
txlimonly = no ; Audio limiting with no pre-emphasis on output channel: no,yes
; no - Audio is not limited.
; yes - Audio is limited.
; Suitable for transmitters with no limiting but with pre-emphasis.
txtoctype = notone ; Transmit tone control type: no,phase,notone
; no - CTCSS tone encoding with no hang time
; phase - encode CTCSS and reverse phase
; AKA (“reverse burst”) before unkeying TX
; notone - encode CTCSS and stop sending tone before unkeying TX
; AKA (“chicken burst”)
txmixa = composite ; Left channel output: no,voice,tone,composite,auxvoice
; no - Do not output anything
; voice - output voice only
; tone - CTCSS tone only
; composite - voice and tone
; auxvoice - auxiliary voice output at headphone level for monitoring
txmixb = composite ; Right channel output: no,voice,tone,composite, auxvoice
; no - Do not output anything
; voice - output voice only
; tone - CTCSS tone only
; composite - voice and tone
; auxvoice - auxiliary voice output at headphone level for monitoring
; Audio filters - requires version newer than ASL_1.01
rxlpf = 0 ; Receiver Audio Low Pass Filter 0,1 2
; 0 - 3.0 kHz cutoff (Default) value for reduced noise and increased intelligibility.
; 1 - 3.3 kHz cutoff for increased high end, sibilance and brightness.
; 2 - 3.5 kHz cutoff for even more high end, sibilance and brightness.
rxhpf = 0 ; Receiver Audio High Pass Filter 0,1
; 0 - 300 Hz cutoff. (Default) value to reduce sub-audible signals for retransmission and in the receiver speaker.
; 1 - 250 Hz cutoff for additional received and retransmitted bass response.
; recommend using this filter with a CTCSS tone no higher than 186.2 Hz.
txlpf = 0 ; Transmitter Audio Low Pass Filter 0,1
; 0 - 3.0 kHz cutoff. (Default) value.
; 1 - 3.3 kHz cutoff for increased high end, sibilance and brightness.
txhpf = 0 ; Transmitter Audio High Pass Filter 0,1,2
; 0 - 300 Hz cutoff. (Default) value to reduce interference between voice and sub-audible signaling tones and codes.
; 1 - 250 Hz cutoff for increased bass response in transmitted audio.
; 2 - 120 Hz cutoff for special applications requiring additional bass response in transmitted audio.
; Not recommended due to the increased possibility of voice energy interfering with sub-audible signaling
invertptt = 0 ; Invert PTT: 0,1
; 0 - ground to transmit
; 1 - open to transmit
duplex = 1 ; Duplex 0,1
; 0 - half duplex
; 1 - full duplex
duplex3 = 0 ; duplex 3 gain setting (0 to disable) ???
#includeifexists custom/usbradio.conf
