CM108 USB fob no PTT/red LED

App_rpt-users
1

I’m running DIAL on a R-Pi2 into a modified USB fob for connection to my repeater.

Everything seems to load and be configured fine, but I can’t get the fob PTT to trip. I believe the PTT FET is driven from the red LED on the fob (pin13) and I can’t get a new unmodded fob to cycle the red LED either.

Simpleusb-tune-menu “f” test of PTT and audio shows no LED/PTT activity, but tone is OK.

Audio courtesy tones and hang time and receive audio passes the in/out of the fob during COR, just NO keying.

Now I did install DIAL on the R-Pi2 without CM108 attached if that was important.

Ideas where the config is unright?
73,

Duane KA1LM #42996

2

Duane,
The red LED on the sound fob is not PTT. It’s mute. You would
need to add a LED to the PTT output circuit to get a LED for
transmit.

73, Steve N4IRS

···

On Tue, Feb 23, 2016 at 1:52 PM, DuaneVT
. selkie2@comcast.net wrote:

            I'm

running DIAL on a R-Pi2 into a modified USB fob for
connection to my repeater.

            Everything

seems to load and be configured fine, but I can’t get
the fob PTT to trip. I believe the PTT FET is driven
from the red LED on the fob (pin13) and I can’t get a
new unmodded fob to cycle the red LED either.

              Simpleusb-tune-menu "f"

test of PTT and audio shows no
LED/PTT activity, but tone is OK.

            Audio

courtesy tones and hang time and receive audio passes
the in/out of the fob during COR, just NO keying.

            Now

I did install DIAL on the R-Pi2 without CM108 attached
if that was important.

            Ideas

where the config is unright?

            73,

            Duane

KA1LM #42996

      _______________________________________________

      App_rpt-users mailing list

      App_rpt-users@ohnosec.org

      [](http://ohnosec.org/cgi-bin/mailman/listinfo/app_rpt-users)[http://ohnosec.org/cgi-bin/mailman/listinfo/app_rpt-users](http://ohnosec.org/cgi-bin/mailman/listinfo/app_rpt-users)



      To unsubscribe from this list please visit [](http://ohnosec.org/cgi-bin/mailman/listinfo/app_rpt-users)[http://ohnosec.org/cgi-bin/mailman/listinfo/app_rpt-users](http://ohnosec.org/cgi-bin/mailman/listinfo/app_rpt-users)
      and scroll down to the bottom of the page. Enter your email

address and press the “Unsubscribe or edit options button”

      You do not need a password to unsubscribe, you can do it via

email confirmation. If you have trouble unsubscribing, please
send a message to the list detailing the problem.

3

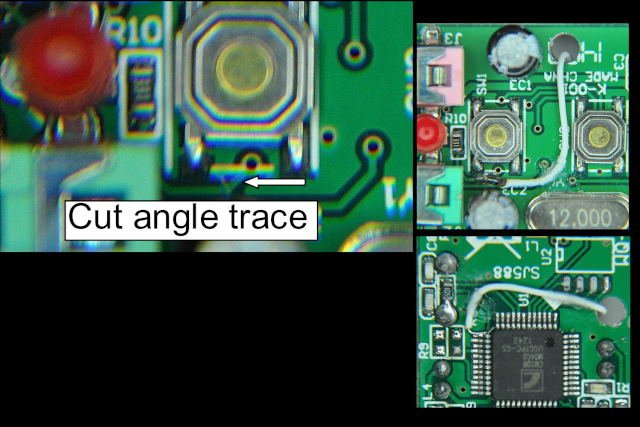

See enclosed photo…you will need to cut a
